Krc4 X11 Wiring  Controller 24V DC Bypack Safety-critical Signals

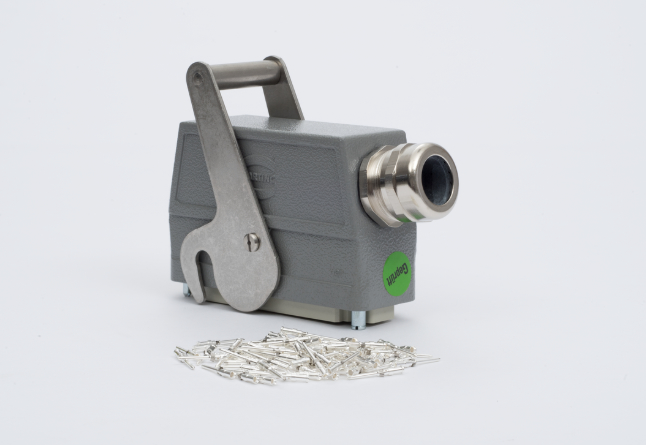

The KUKA X11 KRC4 Connector Bypack is a specialized interface module designed for KUKA industrial robots equipped with the KRC4 controller. It serves as a critical component for integrating external safety devices (e.g., emergency stop buttons, safety gates) and power supplies into the robot’s control system.

• Enhanced Safety: Dual-channel design prevents single-point failures, meeting stringent safety standards.
• Plug-and-Play: Simplifies wiring with pre-defined pin assignments for safety signals.
• Scalability: Supports additional safety devices without modifying the core controller.
• Cost-Efficiency: Reduces downtime by enabling quick troubleshooting of safety circuits.
• Step 1: Identify the X11 connector on the KRC4 control cabinet (location varies by model).
• Step 2: Connect external safety devices to the designated pins (e.g., E-Stop to pins 1-2 and 19-20).
• Step 3: Route power cables to the 24V DC terminals, ensuring proper grounding.
• Step 4: Test safety functions using KUKA’s diagnostic tools (e.g., KUKA.WorkVisual)

Advantage:

Place of origin: China

Brand Name: KUKA

Control system electrical components

FAQ:

*Q:Why are we?

 A:Our company works robot industry over fifteen years. Programming robot inclusive KUKA ,ABB,YASKAWA,FANUC,ESTUN(Chinese ROBOT ),EFORT(Chinese robot). the business involved simulation,programming,service after warranty period.

*Q:How about our service concept?

  A:We keep on phone open all day. Stand in customer view to provide rationalization solution and robot selection.

*Q:What products can we offer?

 A:robot, energy supply for robot, linear for robot. Training for robot. Gripper for handling.

*Q:Why you purchase from us?

 A:You don’t worry about after-sales problem to cooperation with us.
